Why More And More Building Inspections Opting For Thermal Imaging Cameras?

1. Introduction

In building maintenance, traditional inspection methods have largely relied on manual patrols and partial dismantling for examination. While cost-effective, these approaches present significant limitations: numerous potential hazards such as wall seepage, pipe blockages or electrical overloads remain difficult to detect; partial dismantling is not only time-consuming and labour-intensive but may also cause secondary damage; manual inspections suffer from low efficiency and poor accuracy, often leading to delayed problem resolution and increased maintenance costs. As building scale and management complexity continue to increase, the industry urgently requires efficient, precise, and non-intrusive inspection tools. Thermal imaging technology has consequently emerged rapidly as an ideal solution.

2. Pain Points of Traditional Inspection Methods

1) High Concealment of Issues

Problems like damaged wall insulation or roof leaks are often hidden within structures, making them difficult to assess visually through conventional means.

2) Highly Destructive Inspection

Inspections frequently require dismantling building components, increasing costs and disrupting building usage.

3) Lack of Objective Data

Relying heavily on manual experience leads to subjective results lacking quantitative evidence.

4) Significant efficiency-cost trade-offs

Extensive building inspections involve prolonged cycles, challenging re-inspections, and high labour costs.

3. Principles and Advantages of Thermal Imaging Technology

1) Working Principle

In nature, all objects above absolute zero continuously emit infrared radiation energy—buildings being no exception. An object’s infrared radiation characteristics correlate closely with its surface temperature. Thus, measuring an object’s inherent infrared radiation accurately reflects its surface temperature distribution.

Infrared thermal imaging technology operates on this principle: infrared detectors capture the emitted radiation from a target surface and convert it into visual thermal images. Within these images, varying colours correspond to different temperature levels. When thermal conduction anomalies occur within a building structure, localised temperature distributions manifest as distinct colour variations relative to surrounding areas, thereby revealing potential structural defects and energy losses.

2) Advantages

① Non-destructive and safe inspection: Inspections are completed without the need for wall removal, drilling, or structural dismantling, thereby avoiding damage to the building and ensuring the safety of inspection personnel.

② Efficient inspection: Thermal imagers can scan large areas in a short time, providing a comprehensive overview of the overall temperature distribution and significantly improving inspection efficiency.

③ Intuitive and traceable data: Anomalies are visually highlighted via thermal maps, facilitating subsequent analysis, report generation, and historical comparisons to provide scientific grounds for building energy efficiency and defect assessment.

④ Supports preventative maintenance: Enables early identification of potential energy losses, leakage risks, and equipment failures, enabling ‘early detection and early intervention’.

⑤ Multi-scenario applicability: Suitable for diverse inspection scenarios including wall insulation, roof water ingress, underfloor heating networks, and electrical equipment, effortlessly addressing varied building assessment requirements.

4. Application Scenarios of Thermal Imaging in Building Inspection

1) Underfloor Heating and District Heating Network Inspection

Within building heating systems, both underfloor heating pipes and district heating networks may encounter issues such as pipe blockages, leaks, inadequate insulation, or uneven heat distribution. Traditional inspection methods often rely on manual expertise, struggling to provide an intuitive representation of temperature distribution—a process that is both time-consuming and imprecise. Infrared thermal imaging cameras enable comprehensive monitoring of heating system operational status through real-time thermal imaging:

① For central heating networks: Thermal imaging allows monitoring of heat loss along pipeline routes, swiftly identifying areas with deteriorated insulation, joint leaks, or significant thermal dissipation. This assists maintenance personnel in promptly detecting potential hazards, preventing heat wastage and accidents.

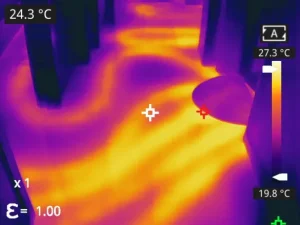

② For underfloor heating systems: Thermal imaging rapidly scans surface temperature distributions, visually demonstrating heating uniformity. Should pipe ruptures, blockages, or leaks occur, distinct abnormal temperature zones appear on the surface. Inspectors can pinpoint faults without excavation, significantly enhancing repair efficiency.

2) Roof Leak Detection

Water ingress represents a common yet challenging issue in building inspections. Traditional methods rely on visual inspection or destructive sampling, proving inefficient and yielding inconsistent results.

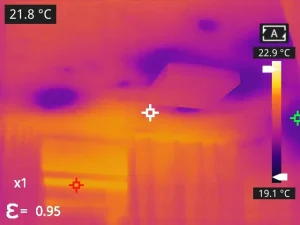

Infrared thermal imaging cameras swiftly identify moisture-containing areas by detecting minute temperature variations on wall surfaces. Due to the heat absorption effect of evaporation at leakage points, their surface temperatures typically fall below surrounding dry areas, forming ‘cold spots’ on thermal images. Inspectors can visually determine the extent of leakage and assess its direction without damaging walls, providing scientific evidence for subsequent repairs.

3) Thermal Insulation Layer Defect Detection

External wall insulation in buildings impacts not only energy consumption and carbon emissions but also structural longevity and occupant comfort. Any damage, detachment, or uneven thickness in the insulation layer allows heat to escape through the compromised areas, leading to increased energy consumption, wall dampness, and unstable indoor temperatures.

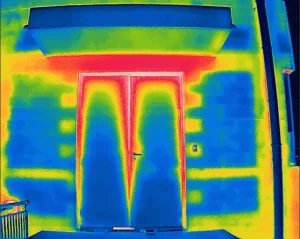

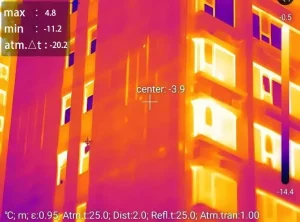

By scanning building facades, infrared thermal imaging cameras visually identify heat leakage points: well-insulated areas exhibit uniform temperature distribution in thermal images, while defective zones appear as distinct ‘hot spots’ or ‘cold spots’.

Whether for energy efficiency inspections in new constructions or retrofit assessments in existing buildings, infrared detection enables rapid evaluation of insulation quality, providing reliable, visual evidence for energy management.

4) Electrical System Hazard Detection

During building operation, poor contacts, excessive loads, or ageing deterioration in wiring junctions, switches, distribution cabinets, and plant room equipment often cause localised overheating. If undetected, this readily leads to insulation failure, short circuits, or even fire.

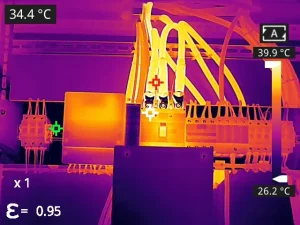

Infrared thermal imaging cameras enable inspection while equipment remains energised, swiftly identifying abnormal hotspots through thermal imaging for non-destructive, real-time diagnostics. The system supports temperature rise monitoring and intelligent alerts, prompting maintenance personnel to intervene proactively. This effectively prevents incidents, ensuring the safe and stable operation of building electrical systems.

5) Door and Window Seal Defect Detection

As critical components of a building’s envelope, the sealing performance of doors and windows directly impacts indoor temperature control and energy consumption. During practical inspections, technicians typically combine a blower door with an infrared thermal imager. The blower door creates positive or negative pressure inside the building, generating a pressure differential between the interior and exterior. Should air leakage occur, the rapid movement of air alters local temperatures. Thermal imaging cameras detect these subtle temperature variations, revealing distinct cold spots or thermal bridges. This enables rapid leak location, providing clear guidance for subsequent sealing and repair work, thereby significantly enhancing the efficiency of energy-saving retrofits.

5. Target Users for Infrared Thermal Imaging Cameras

1) Professional Inspection Agencies

For detecting defects in external wall insulation, identifying water ingress points, and conducting energy efficiency assessments. Enables rapid imaging and precise analysis, significantly enhancing inspection efficiency and report credibility.

2) Property and Facilities Management Units

Facilitates temperature monitoring of heating systems, electrical circuits, and equipment rooms during building operations. Aids in early hazard detection, reducing incidents such as power outages and water leaks.

3) Engineering Design and Construction Firms

Employed for construction quality acceptance, energy efficiency compliance testing, and post-installation re-inspection to validate insulation and pipework installation outcomes.

4) Corporate Safety Oversight and Fire Inspection Agencies

Utilised for building safety inspections, energy efficiency assessments, and fire hazard investigations, facilitating on-site evidence collection and risk evaluation.

5) Individual Users

Detects wall dampness, insulation deficiencies, uneven indoor heating, draughty windows/doors, and common electrical hazards. Enables homeowners to swiftly identify issues for timely repairs, enhancing residential comfort and safety.

6. Product Recommendations

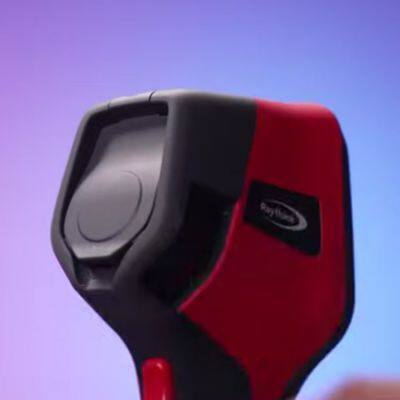

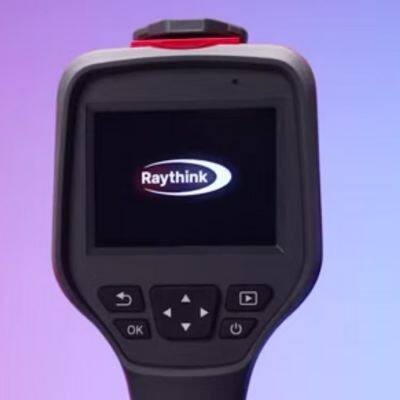

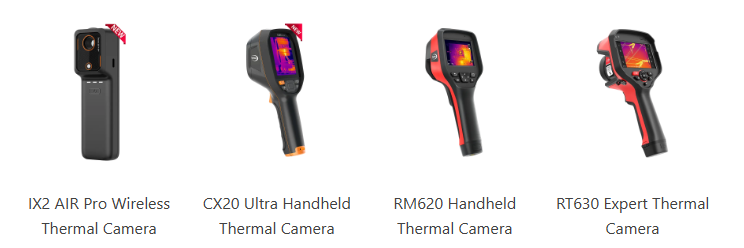

7. Conclusion

Infrared thermal imaging technology offers a novel solution for building inspections through its non-destructive, visual, efficient and precise characteristics. It rapidly identifies energy consumption anomalies, water ingress risks and electrical safety hazards, supporting energy optimisation, maintenance management and safety inspections in residential and commercial buildings. This makes issues visually apparent and inspections more scientific.

Should you require professional building thermal imaging inspection solutions, Raythink offers a comprehensive product portfolio and expert technical services to provide reliable support for inspection agencies, facility management organisations, and users prioritising home safety. We welcome you to contact Raythink‘s sales team.
