In today’s complex and dynamic security surveillance and industrial inspection environments, traditional monitoring equipment often struggles to meet the demands for large-scale, all-weather, high-precision monitoring. Particularly at night or in low-light conditions, visible-light cameras experience a significant decline in recognition capabilities, while the precise tracking of moving targets remains a common technical bottleneck. PTZ (Pan-Tilt-Zoom) Thermal cameras have emerged as the key solution to address these challenges.

1. Challenges in Surveillance Systems

In scenarios such as security, forest fire prevention, and industrial inspections, surveillance systems frequently encounter three major challenges:

1) Wide-area monitoring challenges represent an insurmountable technical barrier for traditional fixed cameras. With limited fields of view, fixed cameras struggle to cover expansive areas, resulting in numerous monitoring blind spots and dead zones.

2) Difficulty in identification during nighttime or low-light conditions highlights the limitations of visible-light cameras. In adverse conditions like nighttime, fog, or smoke, visible-light cameras suffer drastically degraded imaging quality — high noise levels and low contrast—rendering target feature recognition ineffective.

3) Precise target tracking challenges are particularly pronounced in complex environments. When moving targets (e.g., people, vehicles) accelerate within the surveillance field, traditional equipment lacks intelligent tracking and auto-focus capabilities, often resulting in target loss.

PTZ thermal cameras achieve a leap from “seeing” to “seeing clearly, tracking accurately, and identifying precisely” through three major technological breakthroughs: dual-spectrum imaging (visible light + thermal imaging), high-precision pan-tilt control, and intelligent video analytics. This technology combination enables the camera to maintain stable surveillance performance in various harsh environments, providing a reliable solution for modern security and industrial inspection.

2. In-Depth Analysis of PTZ's Three Core Technologies

1) Pan and Tilt: Comprehensive Monitoring Without Blind Spots

The PTZ camera’s pan-tilt system forms the foundation for horizontal (Pan) and vertical (Tilt) movement, directly determining the camera’s monitoring range and flexibility. Taking the Raythink PC6S4 as an example, this device showcases the advanced capabilities of modern pan-tilt systems:

· Horizontal Rotation Capabilityachieves 360° continuous rotation, enabling truly blind-spot-free surveillance. This design allows a single camera to cover the entire circumferential area, significantly enhancing monitoring efficiency.

· Vertical Rotation Rangespans -90° to +90°, meaning the camera can monitor vertically upward from directly below or elevate to 90° above the horizontal line, achieving complete coverage from ground to sky.

· Rotation speedreaches 0.01°–120°/s horizontally and 0.01°–60°/s vertically, enabling rapid tracking and smooth movement.

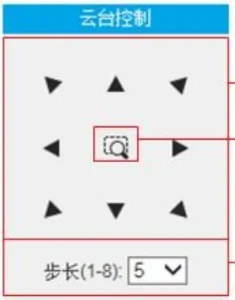

· Intelligent scanning modesrepresent another key feature of modern PTZ systems. The PC6S4 supports multiple scanning modes including preset points, patrol inspection groups, linear scanning, and pan-tilt scanning. Users can pre-set hundreds of monitoring positions based on actual needs and create automated patrol paths.

For instance, in security applications, preset points can be configured for critical areas to automatically pivot to designated positions upon alarm triggers. In industrial inspections, timed patrol routes can be programmed to enable unattended automated inspections.

2) High-Precision Zoom: Precise Capture from Wide-Angle to Long-Range

Zoom capability is one of the core strengths of PTZ cameras, determining surveillance effectiveness at varying distances. The PC6S4 features a dual-spectrum zoom system, delivering outstanding zoom performance across both visible light and thermal imaging bands:

· Visible Light Zoom System: Utilizes a 15–775mm optical zoom lens to achieve 52x magnification. Paired with a 1/1.8-inch 4-megapixel CMOS image sensor, it achieves a maximum resolution of 2688×1520, maintaining image clarity even at maximum magnification.

· Thermal Imaging Zoom System: Equipped with a 25–225mm continuous zoom infrared lens, it supports a maximum resolution of 1280×1024. Utilizing the latest generation 12μm uncooled infrared detector, combined with advanced infrared image processing algorithms, ensures exceptional thermal imaging quality and detail reproduction.

· Focus Technology: The PC6S4 supports auto/manual/one-time autofocus, maintaining sharp images whether capturing close-up details or identifying distant targets.

3) Thermal Imaging Technology: Unfazed by Darkness and Harsh Environments

Thermal imaging technology is crucial for PTZ cameras to maintain effective surveillance in low-light, foggy, or smoky conditions. The thermal imaging system in the PC664 represents the current state-of-the-art in this field:

· Detector Performance: The device utilizes a 12μm uncooled VOx infrared detector with a response band of 8–14μm—the atmospheric window band—minimizing atmospheric absorption effects on imaging. With a NETD (Noise Equivalent Temperature Difference) of ≤40mK (@25°C, F#1.0, 25Hz), this detector demonstrates exceptional thermal sensitivity, capable of resolving minute temperature variations.

· Image Processing Technology: The PC664 integrates advanced infrared image algorithms, delivering outstanding performance in noise reduction, enhancement, and detail preservation. The device offers 20 pseudocolor modes including black-hot, white-hot, and rainbow, allowing users to select the optimal display mode for different scenarios and personal preferences.

· Smart Temperature Measurement and Alarms: The PC664 supports intelligent hotspot detection, automatically identifying abnormal high-temperature points in the image and triggering alarms. This feature holds significant value in applications such as forest fire prevention and industrial firefighting.

3. Additional Intelligent Features

Beyond basic surveillance capabilities, modern PTZ cameras integrate a suite of AI-driven intelligent functions, significantly enhancing practical utility and smart performance:

· Automatic Tracking: Supports automatic recognition of faces, vehicles, and other objects, with continuous tracking of moving targets.

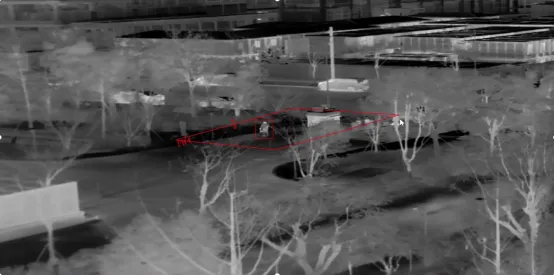

· Intelligent Alarm System: Supports behavior analysis for cable intrusion, area intrusion, boundary crossing, and more. Automatically triggers alarm actions upon detecting abnormal behavior. Alarm linkage methods include recording, snapshot capture, email notifications, PTZ preset positioning, and alarm outputs, forming a complete alarm handling loop.

· Remote Control and Centralized Management: Supports standard protocols like ONVIF and GB28181, with SDK development kits available for seamless integration with third-party systems. Supports simultaneous preview of up to 20 channels and management of 20 users, with hierarchical permission settings ensuring flexible and secure system administration.

Furthermore, the PC6 series incorporates features like network disconnection recovery with data continuity, intelligent recording, and coaxial linked amplification to guarantee system stability and data integrity.

4. Raythink Product Recommendation: PC6 Series Dual-Spectrum PTZ Cameras

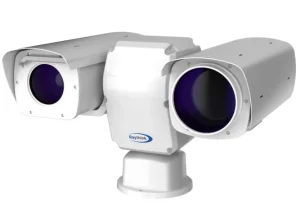

Raythink PC6 Series Dual-Spectrum PTZ Cameras integrates advanced optics, thermal imaging technology, and AI-powered analysis to deliver a professional-grade surveillance solution covering medium-to-long distances, all-weather conditions, and diverse scenarios.

· Dual-Spectrum Fusion Imaging: Equipped with dual channels— 4-megapixel high-definition visible light and 1.3-megapixel uncooled thermal imaging — it supports seamless day/night monitoring. Rich visible light detail combined with powerful thermal penetration meets precise identification demands in complex environments.

· Intelligent Pan-Tilt System: Featuring a high-precision pan-tilt design, it supports 360° continuous horizontal rotation and -90° to +90° vertical tilt. Preset point accuracy reaches ±0.1°, with multiple scanning modes available for comprehensive, blind-spot-free surveillance.

· Ultra-Long-Range Surveillance: The series covers a multi-level zoom range of 25-775mm, with a maximum detection distance of 28.8 kilometers. Supports coaxial zoom for clear identification of distant targets.

· Industrial-Grade Reliability: Entire series features IP66 protection rating and wide-temperature operation (-40°C to +70°C). Integrated lightning, surge, and spike protection ensures long-term stable operation in harsh environments.

· Open Protocol Architecture: Supports ONVIF and GB28181 standard protocols, provides a complete SDK development package, and is compatible with mainstream NVRs and management platforms, facilitating system integration and secondary development.

5. Typical Application Scenarios

· Industrial Inspection: PC6S4 is widely used for equipment condition monitoring in high-temperature and high-risk areas such as chemical plants, power facilities, and metallurgical enterprises. Its thermal imaging capability enables timely detection of equipment overheating anomalies, preventing accidents.

· Security Surveillance: Covers urban aerial surveillance, border patrols, airport perimeter monitoring, and critical facility protection. Its 360° continuous rotation pan-tilt mechanism enables wide-area coverage, facilitating reduced or even unmanned monitoring.

· Firefighting and Rescue: The PC6 series plays a vital role in forest fire prevention, urban firefighting, and fire scene command. The device detects fire sources early, accurately locates hotspots, and provides decision support for firefighting operations.

· Ecology and Research: Wildlife monitoring, ecological studies, and climate observation. The equipment enables long-term observation without disturbing animals, providing valuable data for scientific research.

6. Selection and Deployment Recommendations

1) Functional Priority Recommendations

· Thermal Imaging Accuracy: Select products with NETD ≤40mK to ensure clear thermal imaging even in environments with small temperature differences.

· Zoom Capability: Recommend ≥20x optical zoom, with digital zoom as a supplementary function. For ultra-long-range surveillance applications, select products like the PC6S4 with over 50x optical zoom capability.

· PTZ Precision: Choose products with precisely adjustable rotation speeds and preset point positioning accuracy ≤0.1°. The PTZ should feature multiple scanning modes and support automated patrols.

2) Deployment Environment Analysis

· Installation Height: Generally recommended at ≥6 meters to avoid obstruction by trees, buildings, or other obstacles.

· Monitoring Range: Select appropriate lens combinations based on target distance. For example, the PC6S4’s 225mm lens is suitable for ultra-long-range surveillance, while standard lenses are better for medium-range applications.

· Weather Conditions: In regions with frequent rain or fog, choose models supporting optical fog penetration and IP66 protection. In lightning-prone areas, the device’s lightning and surge protection capabilities must comply with relevant standards.

· System Integration: Select products supporting standard protocols like ONVIF and GB28181 to ensure compatibility with existing monitoring platforms.

Conclusion

PTZ thermal cameras serve not only as the “eyes” of security surveillance but also as the “brain” of intelligent, all-weather monitoring systems. From pan-tilt control to zoom capture, from thermal imaging detection to AI analysis, they are redefining the boundaries of modern surveillance. The Raythink PC6 series, as a heavy-duty PTZ camera integrating dual-spectrum imaging, high zoom capability, and powerful intelligence, is undoubtedly the ideal choice for high-end applications in industrial, security, and fire protection sectors. If you are seeking a reliable all-weather surveillance solution, please contact the Raythink team for customized product recommendations and technical support.
