Best Termite Thermal Imaging Cameras From Raythink

Termites represent one of the most severe pest threats facing the global construction industry. Unlike other pests, the concealed nature of termite activity enables them to cause structural damage over months or even years without detection. These insects colonize within building wall cavities, floor interstices, and roof spaces—far from human sight—silently eroding wooden structures.

According to pest control professionals, subterranean termites account for approximately 95% of all termite infestations. These termites construct mud tubes from the ground into building foundations, forming complex networks of subterranean galleries. Once settling inside a building, termites rapidly regulate the humidity and temperature of the galleries to maintain an optimal environment for survival.

Consequently, termites cause tremendous economic losses, making early detection of termite infestations critical for homeowners and building professionals.

1. Why Thermal Imaging Cameras Can Be Used for Termite Detection

Thermal imaging cameras detect infrared radiation emitted by objects and convert it into visible thermal images. Objects at different temperatures appear as distinct colors in thermal imaging, providing intuitive information about temperature distribution.

The effectiveness of thermal imaging for termites detection lies in a key fact: termite colonies generate heat and alter surrounding humidity conditions. When thousands of termites congregate, their metabolic activity produces heat. Simultaneously, termites secrete fluids and manage moisture environments within their galleries to maintain optimal humidity and survival conditions. These heat and humidity changes create temperature differentials between termite activity zones and surrounding building materials.

This subtle yet persistent temperature differential is the key to thermal imaging termite inspection. Although these temperature anomalies may be extremely minor, high-sensitivity infrared detectors can capture and convert them into visualized images. This enables professional inspectors to discover termite activity hidden within building structures, even when such activity is completely invisible on the surface.

2. Raythink Best Termite Thermal Camera Recommendations

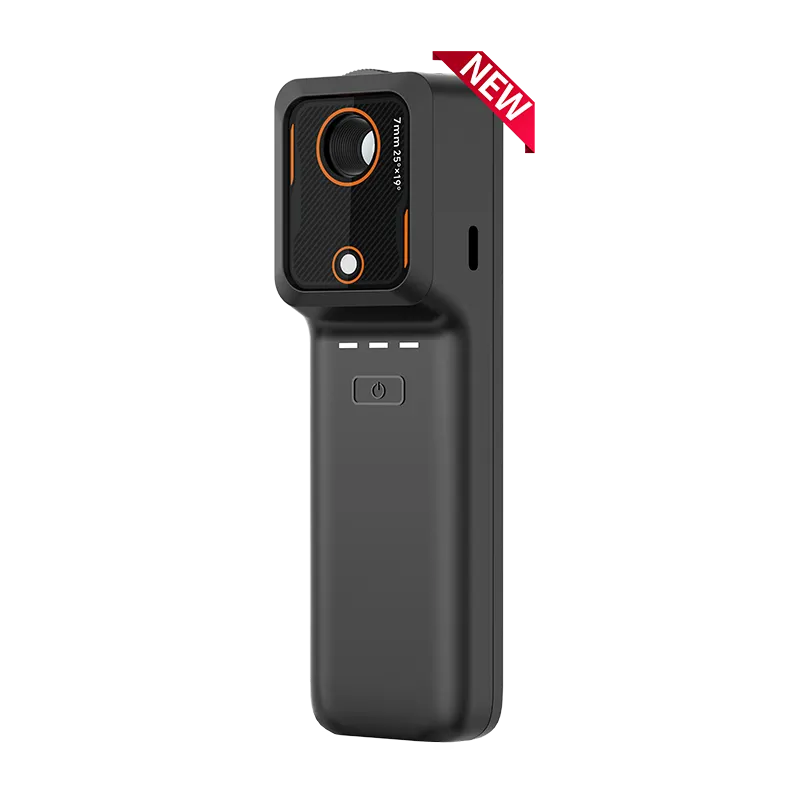

1) IX2 AIR Pro Wireless Thermal Camera for Smart Devices

Key Features:

· Wireless Transmission Portability: Supports wireless image transmission within 30m with latency less than 300ms, allowing operators to remotely view thermal imaging in real-time during on-site inspections

· AI Super-Resolution Imaging: 256×192 infrared resolution enhanced to 512×384 through AI real-time super-resolution technology, making subtle temperature anomalies more clearly visible

· High-Sensitivity Infrared Detector: NETD as low as 40mK, capable of identifying extremely subtle temperature differences, suitable for detecting weak thermal signals generated by termite colonies

· AI Voice Assistant: Built-in AI voice assistant function enables users to control the device through voice commands, freeing hands for field inspection

· Professional Software Ecosystem: Equipped with a professional mobile/PC temperature analysis platform, supporting secondary analysis and report generation of thermal imaging data

Best for: Pest control professionals requiring wireless remote inspection, real-time on-site client communication, and high device portability

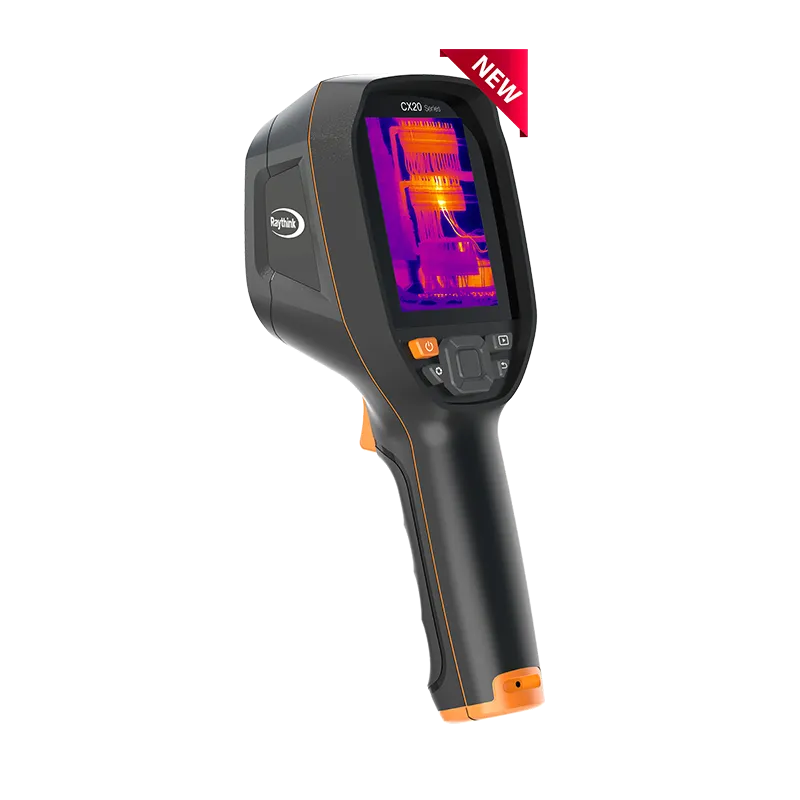

2) CX20 Ultra Handheld Thermal Camera

Key Features:

· High-Definition Touch Display: 5-inch high-resolution touchscreen clearly presents thermal imaging details on-site, facilitating immediate judgment and documentation

· AI Super-Resolution Imaging: 256×192 resolution enhanced to 512×384 through real-time AI super-resolution, making temperature anomalies within walls more evident

· High-Sensitivity Detection: NETD as low as 40mK, precisely capturing subtle temperature differences between termite activity areas and surroundings

· Laser Rangefinder Positioning: Upgraded laser pointer quickly locks onto temperature anomalies, combined with laser rangefinder to achieve precise 3D spatial positioning of abnormal points

· Long Battery Runtime: Supports 18W fast charging and up to 6 hours of continuous operation, meeting building inspection requirements

Best for: Routine thermal termite inspection in commercial and residential buildings, complex projects requiring precise pinpointing of anomalies, on-site report generation and client presentations

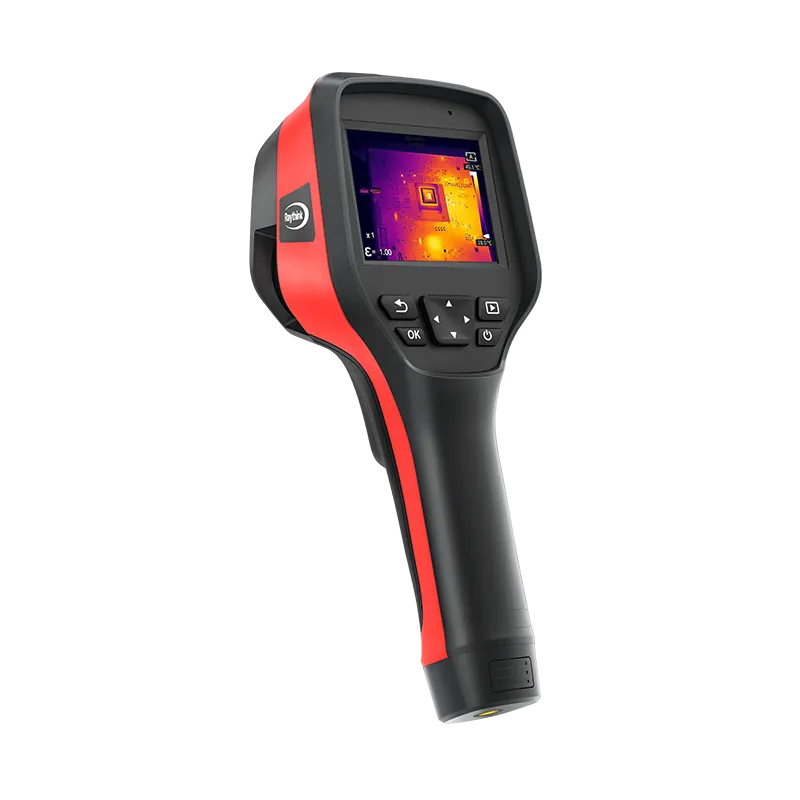

3) RM620 Handheld Thermal Camera

Key Features:

· Ultra-High Resolution Imaging: Proprietary 640×512 high-pixel 12μm advanced-technology detector, effortlessly capturing subtle hot spots

· Ultimate Temperature Sensitivity: Capable of distinguishing temperature differences of 0.035°C, making it an ideal choice for detecting weak thermal signals from termites

· Isotherm Function: Supports isotherm display with customizable highlighting of specific temperature ranges, making potential termite activity zones immediately visible

· Intelligent Task Management: Supports intelligent shooting, inspection task package import and distribution, simplifying routine inspection workflows and enhancing inspection efficiency

· Durable and Reliable Design: IP54 protection rating combined with 2m drop protection, adapting to various field inspection environments

Best for: High-precision infrared termite detection, projects requiring detailed data analysis and professional reports, comprehensive systematic inspections of complex building structures

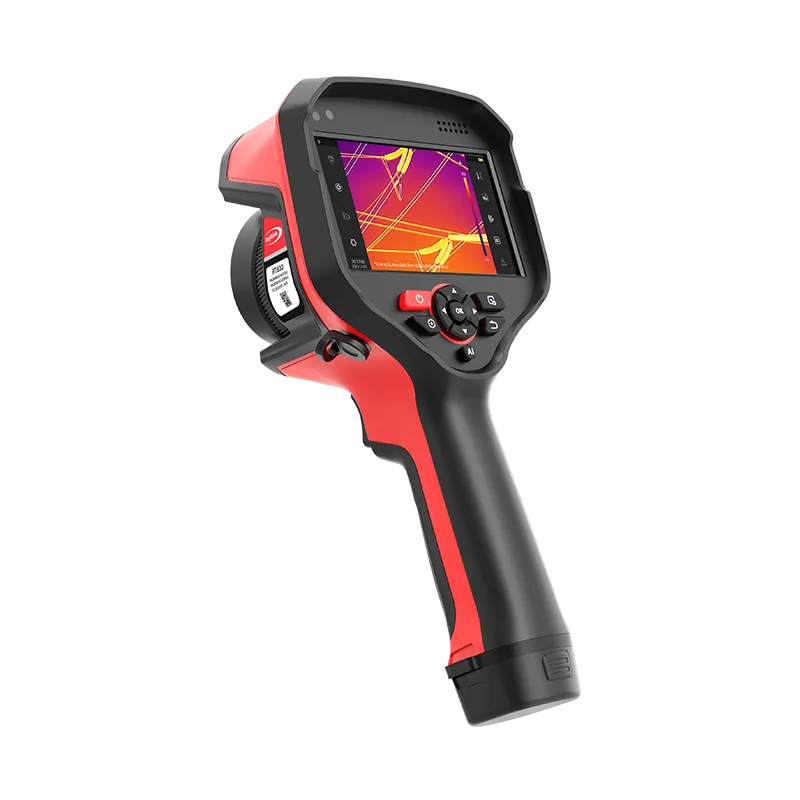

4) RT630 Expert Thermal Camera

Key Features:

· Professional-Grade High-Definition Imaging: 640×512 resolution supporting 1280×1024 super resolution, presenting clear thermal imaging

· High Temperature Sensitivity: NETD as low as 35mK, accurately capturing extremely subtle temperature changes generated by termite colonies

· Interchangeable Lens System: Standard 25° lens, with optional wide-angle, telephoto, super telephoto and macro lenses, flexibly adapting to different inspection scenarios

· Multi-Point Intelligent Analysis: Supports on-screen temperature data analysis of up to 20 points/lines/areas, deeply mining anomalous details in thermal images

· Laser Distance and Area Measurement: Built-in laser rangefinding and area measurement functions, precisely locating and recording the exact position and scope of detected anomalies

Best for: Professional termite inspection agencies’ primary equipment, complex inspection scenarios requiring various lens adaptations, enterprise-level applications establishing long-term detection archives

3. Thermal Imaging Termite Inspection Advantages Over Traditional Methods

1) Non-Destructive/Non-Invasive Detection

Traditional termite detection methods (such as tapping, drilling, probe testing) require physical destruction of building structures to conduct thorough inspections. In contrast, thermal imaging camera for termite detection offers a completely non-destructive inspection approach. Professionals can rapidly scan building interior and exterior surfaces, discovering suspicious temperature anomalies without causing any damage to the property, saving homeowners unnecessary repair costs.

2) High Efficiency and Large-Area Coverage

Thermal imaging termite inspection is significantly faster than traditional methods. Professional inspectors can scan large areas in a short time, including hard-to-reach locations like high ceilings, concealed wall cavities, and roof spaces. This efficiency improvement allows professionals to complete more inspection work daily, while homeowners benefit from more comprehensive services at lower costs.

3) Objective Data Rather Than Subjective Judgment

Traditional tapping method relies on inspectors’ experience and auditory judgment, thus susceptible to by human factors. Thermal camera for termites provides objective temperature data, visualizing specific temperature differences. While interpreting these data still requires certain expertise, thermal imaging termite inspection reduces errors from purely subjective judgments, improving detection accuracy and repeatability.

4) Facilitation of Condition Monitoring and Comparative Analysis

Images captured by thermal imaging cameras can be saved and archived for periodic comparative analysis. Inspectors can compare current thermal images with previous inspection results to track temperature anomaly trends, assessing whether termite infestations are spreading or under control. This documented approach provides clear visual evidence for homeowners and insurance companies.

4. Key Points for Effective Thermal Imaging Termite Inspection

1) Recognizing the Limitations of Thermal Termite Inspection

Thermal imaging cameras detect temperature anomalies, not directly identify termites. In buildings, many factors can cause temperature anomalies, including water leaks, insulation defects, air flows, other pest activity, or solar radiation. Therefore, temperature anomalies detected by thermal imaging require confirmation through other methods—such as humidity measurement and physical inspection—to ensure accurate judgment.

Additionally, environmental factors such as seasonal changes, sunlight intensity, and thermal conductivity characteristics of different building materials can all influence detection results. Professional inspectors need to accumulate experience to correctly interpret thermal imaging data under varying conditions. Using high-sensitivity thermal imaging cameras with advanced analysis functions helps operators identify genuine anomalous signals more accurately.

2) Optimizing the Infrared Termite Detection Process

Select an Optimal Inspection Time: Avoid direct sunlight on the inspection surface and conduct inspections in the morning or evening. At these times, surface temperature differences are most apparent, making it easiest to identify subtle temperature differences between termite activity areas and surrounding environments.

Employ a Systematic Scanning Method: Divide the building into logical zones and scan each zone sequentially from the exterior inward. Maintain a camera distance of approximately 30cm to 1m from surfaces and capture multiple angles of all suspicious areas, ensuring no potential anomalies are overlooked.

Conduct Complete Data Recording and Comparison: Clearly mark all temperature anomaly locations, recording specific temperature data and environmental conditions. This serves not only to generate the professional report for the current inspection but also establishes critical baselines for future comparative analysis, enabling more targeted follow-up inspections and monitoring.

5. Conclusion: Employing Raythink Thermal Imaging Camera for Termite Detection

The emergence of thermal imaging cameras marks an important transformation in the termite detection and pest control industry. Compared with traditional destructive inspection methods such as tapping and drilling, thermal imaging provides a rapid, accurate, and non-destructive detection solution, making termite thermal imaging camera and thermal camera for termites users’ top choice.

Raythink provides the best thermal imaging camera for termite detection services of different scales and requirements. Equipped with high-sensitivity detectors, advanced AI super-resolution technology, and intuitive data analysis functions, these cameras enable more accurate and efficient termite inspection services for your clients, making them the preferred choice of numerous professionals.

Contact the Raythink team to learn more and select the thermal imaging termite inspection solution best suited to your business needs.
