Application of Infrared Thermal Imaging Technology in Warehouse Fire Prevention and Monitoring

Warehouses are characterized by dense storage of goods and relatively enclosed spaces. In the event of a fire, flames spread rapidly and are difficult to extinguish, often resulting in severe property damage and safety incidents. Traditional fire detection methods rely mainly on smoke alarms and manual inspections, which suffer from delayed detection, numerous monitoring blind spots, and difficulty identifying hidden hazards at an early stage. With its unique advantages in temperature measurement and imaging, infrared thermal imaging technology can detect abnormal temperature rises at the incipient stage of a fire, enabling earlier and more comprehensive safety warnings. It has become an effective technical solution in warehouse fire prevention.

1. Main Application Scenarios of Infrared Thermal Imaging Technology in Warehouse Fire Prevention

Infrared technology is highly versatile and can meet the fire prevention needs of various types of warehouses. Its common application scenarios are mainly as follows:

1）Hazardous Chemicals Warehouse Monitoring

During storage, hazardous chemicals may undergo local temperature rises due to decomposition, leakage, chemical reactions, or other factors, which can further trigger combustion or explosion. Infrared monitoring enables real-time monitoring of temperature changes in storage tanks, pipelines, and cargo stacking areas, promptly detecting abnormal temperature increases to prevent the further escalation of hazardous situations.

2）Battery and New Energy Materials Warehouse Monitoring

Lithium batteries, energy storage modules, and other related materials are at risk of thermal runaway during storage. This risk usually starts with a slight local temperature rise and can lead to intense combustion in a short time. Infrared thermal imaging can capture subtle early-stage temperature abnormalities and identify hazards at the initial stage of thermal runaway, preventing a single battery failure from causing a full-scale warehouse fire.

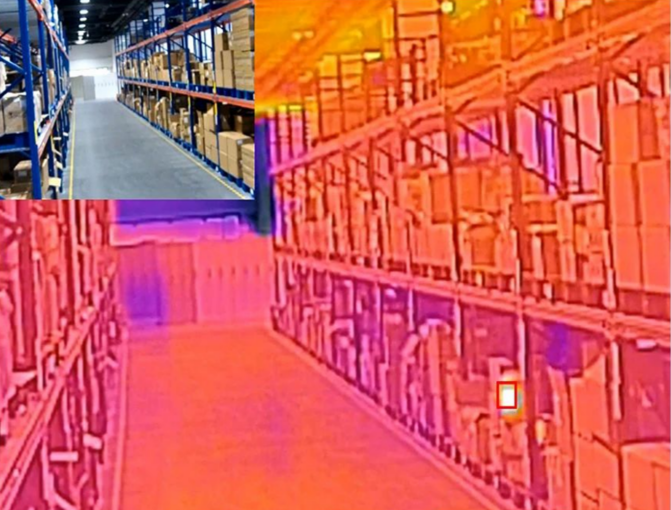

3）General Combustible Goods Warehouse Monitoring

Combustible materials such as wood, textiles, paper, and plastics, when stored in piles for a long time, may be subject to moisture-induced fermentation, internal smoldering, and other issues. Traditional smoke alarms usually only trigger an alert after a large amount of smoke is generated. In contrast, infrared technology can directly monitor the temperature of the goods piles, detect hidden heat sources in advance, and effectively prevent small fires from developing into large-scale ones.

4）Safety Detection of Warehouse Electrical Equipment

Electrical equipment in warehouses, such as distribution boxes, circuits, lighting, and fans, often experiences overheating and sparking due to aging, poor contact, or overload, which is a major cause of warehouse fires. Infrared technology can conduct regular routine inspections on electrical equipment, quickly identify problems such as overheated joints and abnormal temperature rises in circuits, and reduce the occurrence of electrical fires from the source.

5）Fire Prevention in Cold Chain and Special Temperature-Controlled Warehouses

Cold chain and constant-temperature warehouses feature low-temperature, high-humidity environments, and are equipped with extensive electrical equipment and thermal insulation materials, meaning their fire risks cannot be overlooked. Infrared systems operate reliably in harsh conditions, monitoring both ambient temperature stability and potential equipment overheating hazards, effectively balancing temperature control management and fire safety.

2. Advantages of Infrared Thermal Imaging Technology in Warehouse Fire Prevention

Infrared thermal imaging technology detects infrared radiation emitted by objects, converting invisible temperature distribution into visible thermal images that clearly reflect thermal conditions across the monitored area. Compared with traditional fire detection methods, it offers distinct advantages in warehouse environments:

1）Non-Contact Monitoring for Higher Safety

It does not require direct contact with goods or equipment, enabling long-distance temperature detection of warehouse areas. Particularly suitable for warehouses storing dangerous goods, it avoids the need for inspectors to approach high-risk zones while not interfering with normal warehousing operations.

2）Area-Wide Monitoring to Reduce Blind Spots

Traditional detectors are mostly single-point sensing, which tends to leave blind spots in areas such as the interior of shelves, deep within cargo piles, and corners of pipelines. Infrared thermal imaging can scan an entire area as a whole, enabling the detection of abnormal heat points in concealed locations.

3）Outstanding Early Fire Warning Capability

Many fires go through heating and smoldering stages before breaking out, during which no obvious smoke is generated. Infrared technology can capture tiny temperature changes and issue early warnings before a fire starts, gaining valuable time for hidden hazard disposal.

4）Reliable Operation in Complex Warehouse Environments

It functions normally in dark, dusty, and high-humidity environments without being affected by lighting conditions. Capable of 24/7 continuous monitoring, it is well-suited for long-term and stable operation requirements in warehouses.

5）Recordable and Traceable Temperature Data:

Thermal imaging equipment can display temperature values in real time, record temperature change curves, and retain data of abnormal points, facilitating subsequent cause investigation and improvement of safety management measures.

3. Raythink Product Recommendations

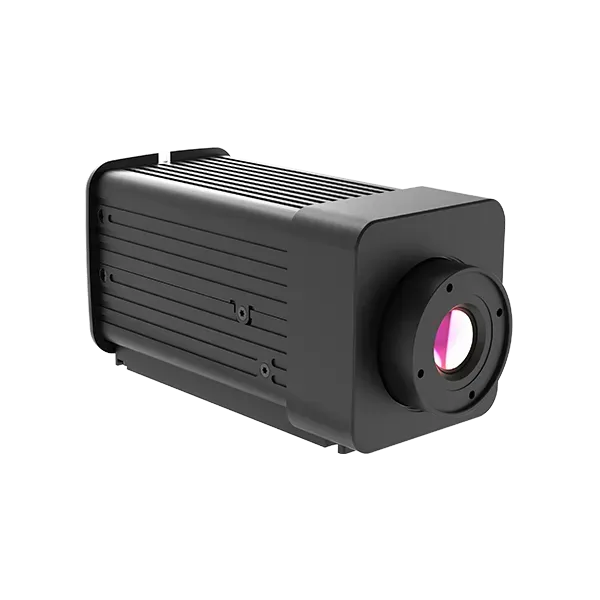

AT61 Motorized Focusing Thermal Camera

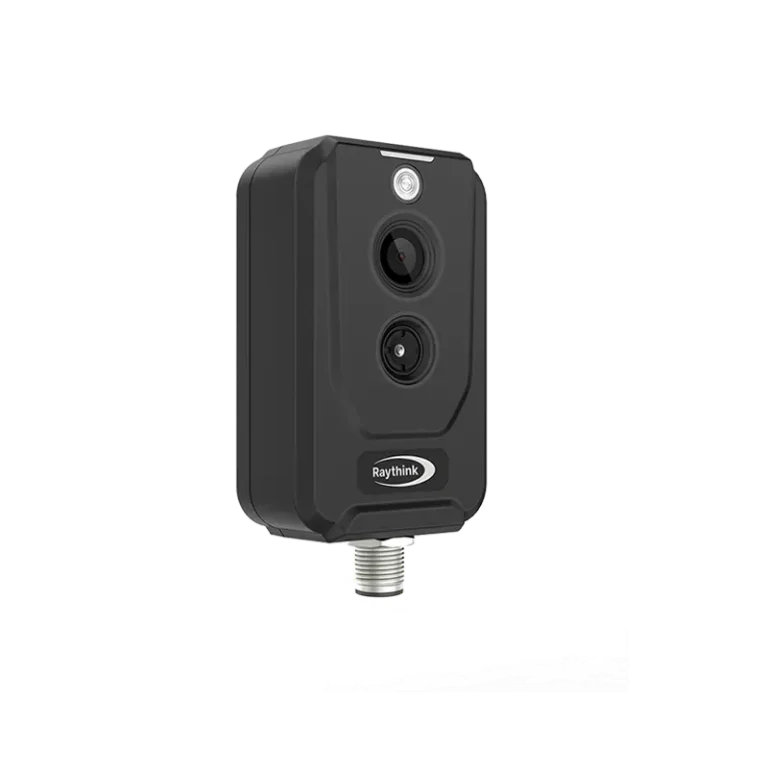

TN220 Thermographic Cube Camera

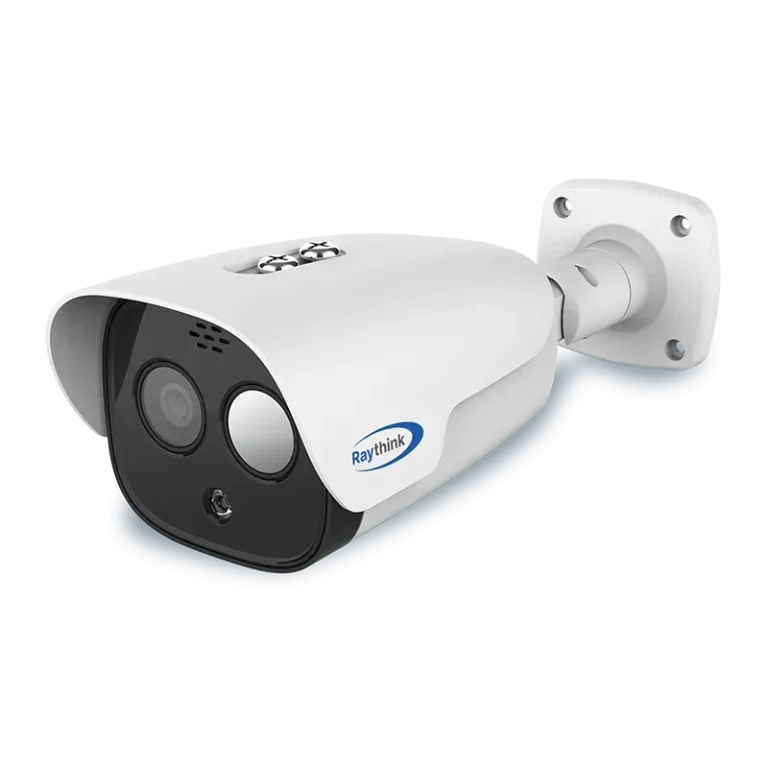

FC225T Dual-Spectrum Bullet Camera

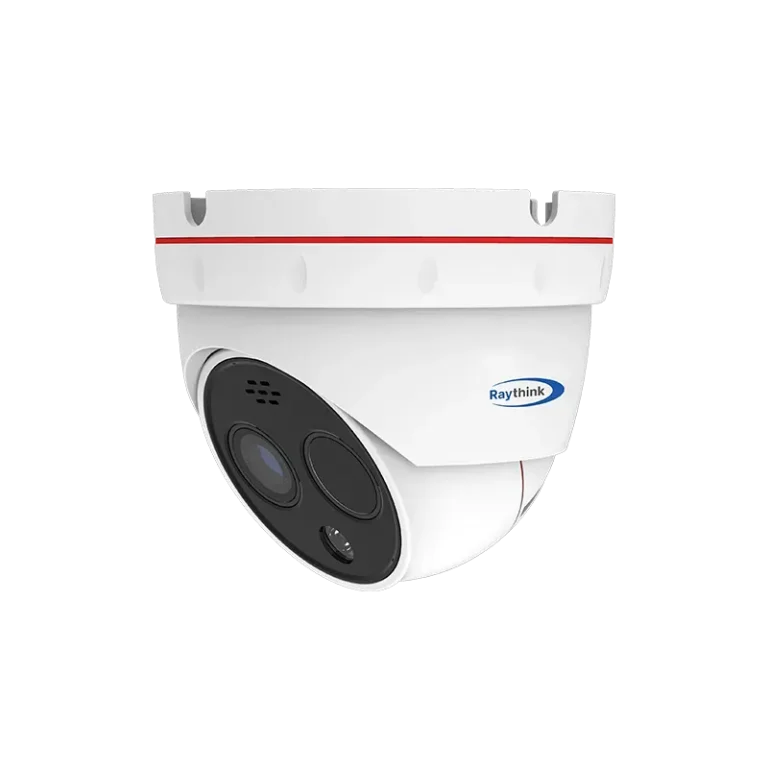

FC125T Dual-Spectrum Turret Camera

The application of infrared technology in warehouse fire prevention realizes the shift from passive fire fighting to active fire prevention. By detecting abnormal temperatures in advance, providing full-area coverage monitoring, and operating reliably around the clock, it can significantly reduce the probability of fire incidents and improve warehouse safety management. Overall, infrared thermal imaging technology features reliable principles and mature applications, offering irreplaceable advantages in early fire detection and prevention for warehouses. It serves as an important technical support in modern warehouse safety systems. For customized solutions tailored to your specific needs, please feel free to contact Raythink.
